model
RD-8500

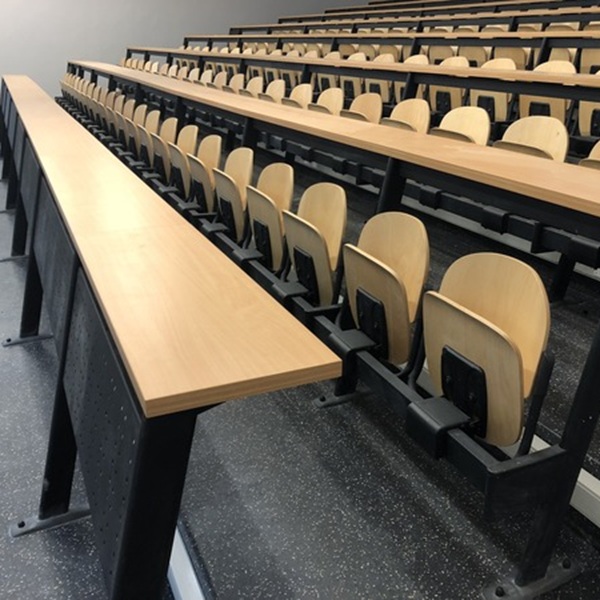

RD-8500 :
Laminated Beech seats and writing surfaces, for maximum seating in the Educational environment. Available with various writing surface finishes and black of grey frames.
Features:
• Functional 2 or 3 seater system with writing surfaces.
• Elegant solution for modern lecture halls, multi-media facilities, conference halls and auditoriums.
• Constructed using a non-scratch, thermosetting epoxy-coated metal.
• The seat and backrest are available in multi-ply beech, thickness 12mm, painted natural or, on request, in other colours.
• Fixed writing surface is made of non-scratch melamine faced tops 27mm thick.
• Chairs are fixed at centres starting at 500mm.
• Continuous writing surface widths = 250mm, 300mm, 350mm and 400mm.
• Continuous writing surface thickness = 27mmPP Lecture Seat
PP LECTURE SEAT :
Budget friendly, durable seating option with continous writing surfaces to your specification. Designed specificalloy for the Educational sector.
Features:
• Gravity tip seat mechanism
• Indoor or outdoor use
• Resistant to adverse weather conditions and vandalism
• Backrest height from floor is 800mm
• Seat depth is 450mm
• Seat width is 410mm
• Various colour options available.
Material Properties:
• Polypropylene seat and back.
• UV and Flame retardant options.
• Smooth gloss finish.
• Steel structure is hot dipped galvanized or epoxy powdered coated.
Continuous Writing Surface:
• Optional to compliment seats.
• Continuous writing surface widths = 250mm, 300mm, 350mm or 400mm.
• • Continuous writing surface thickness = 22mm.
• Laminated Saligna or solid Meranti.
• Pencil groove optional.
• Modesty panel 250 x 22mm optional.Double-Swing

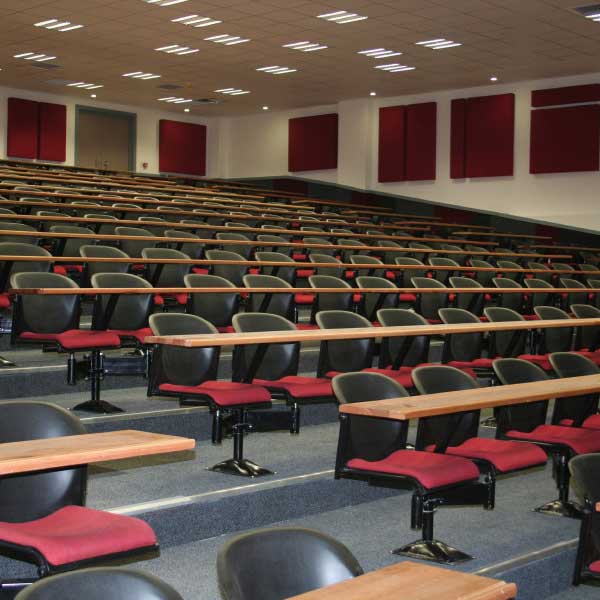

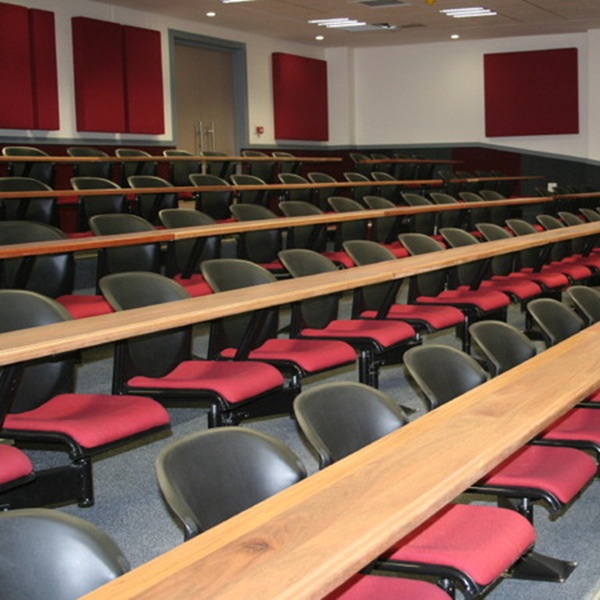

DOUBLE-SWING :
Swing arm seating units for the Educational and Corporate environment with various seat finishes, including Polypropylene, Laminated wood, fully upholstered with or without armrests.
Features:
• Rodlin double swing arm.
• Floor mounted.
• Fully upholstered or unupholstered.
• Continuous writing surface widths = 250mm, 300mm, 350mm and 400mm.
• Continuous writing surface thickness = 22mm or 32mm
Dimensions:
• Back to back, row spacing minimum = 1100mm
• Centre to centre chair spacing minimum = 650mmGroenkloof

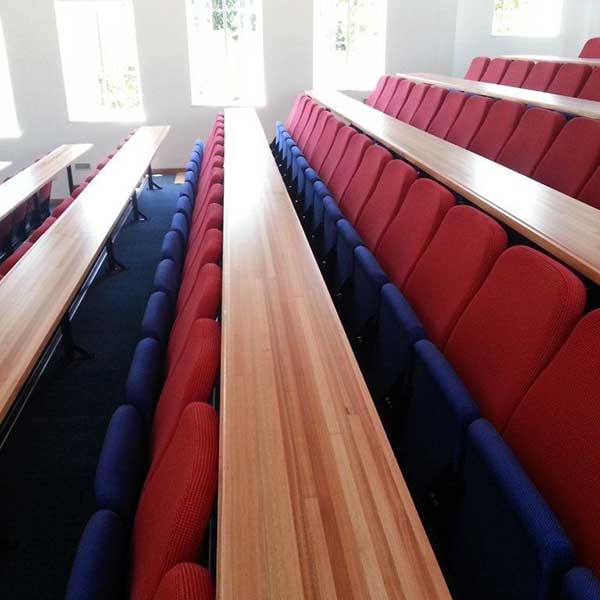

GROENKLOOF :
Solid Saligna Educational bench seating systems. Extremely robust, whilst aesthetically pleasing.
Features:
• Continuous Saligna bench seating system manufactured in various seating configurations/lengths.
• Contoured Seat and Backrest for added comfort.
• Saligna tops 350mm x 32mm. Saligna modesty panel 250mm wide x 16mm.
• Table top legs as well as bench legs are oval tubes 91 x 61 x2.5mm.
• Table top legs with mounting plate 6 x 80 x 250mm
• Front mounting plate 6 x 80 x 150mm
• Floor mounting plate 2.5mm
• Steel Frame Work epoxy powder coated.
• Minimum back to back dimension 900mm (or 1200mm if back walkway required).Wing

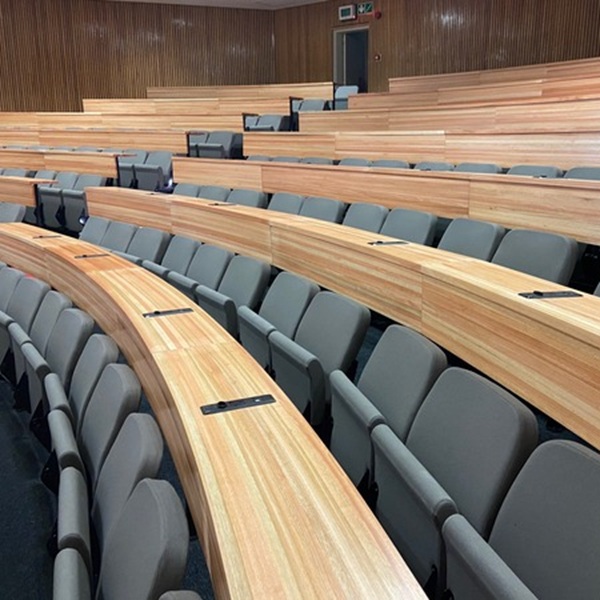

WING :
Elegant and robust, ideal for the Corporate, Church and Educational environments, the Wing auditorium chair is SABS tested for Structural properties. Available in a fabric of your choice, with fold away writing tablet option, as well as laminate backrest and seat options. Wood finishes to your specification.
Features:
• Various upholstered options.
• Automatic Tip-Up Seat.
• 100% Locally Manufactured.
• SABS 1528-1 Compliant.
• Anti-Panic Writing Tablet Option.
• POLYURETHANE arms (with or without).
• Various widths.
• Moulded foam seat.
• Medium or High Back options.Edu-wing

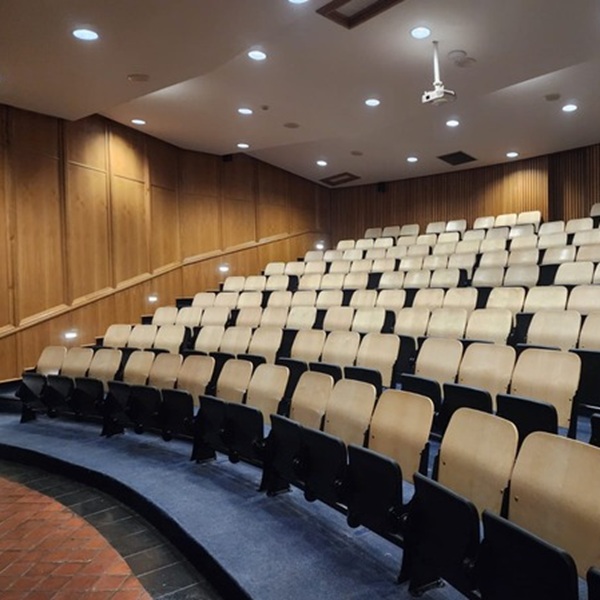

EDU-WING :
Seat and Back constructed from cross-ply laminated board in-cased in a moulded integral poly-urethane skin.
Automatic tip-up seat has a Zinc alloy die-cast spring-loaded mechanism SANS 1528-1
Floor mounted or riser mounted
Metal Sub-frame is Black Epoxy Powder Coated to 70 Microns. The cross-member is 50mm diameter tube. All end and intermediary uprights are laser-cut for precision and provide additional support when needed. These uprights are 5mm mild steel. The side support plates are 5mm thick
Common armrest is moulded self skinning polyurethane on a metal sub-frame attached to the metal framework with a fir-tree plug.
• Anti-panic fold-away Writing Tablet - optional
• Dimensions - 500 to 532mm centres as required in layout.
• The centres increase to 590mm when incorporating a writing tablet.
• Backrest height is available in a medium or high-back option. Back to back spacing 900mm.
• Floor Fixing - All the chairs are anchored to the concrete with a M10x75mm coach screw, with a M12 Fischer SX plug. The hex head on the bolt is covered with a plastic cap.
• 10 year guarantee.
• SANS 1528-1 Test Level 3 Compliant
