Summer Place Spas & Baths Designer Series baths

bath

• Cloud Built-in Delux



  CLOUD BUILT-IN DELUX :
  • 17 Jet
  • Length: 2030mm
  • Width: 1040mm
  • Height: 610mm
  • Shipping weight: 120KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 2
  • Whirlpool fittings: 5
  • Micro jets (SHIATSU): 12
  • Water capacity: 860L/MIN
  • Five 90 litres per minute Centre Air Jets
  • 12 Shiatsu Micro Jets
  • Two individual Water Intakes
  • Two On/Off Jet Button
  • Two Air Controls
  • Silent Filler (optional)
  • Inline Heater
  • Pop Up Waste (included)
  • Convex Back Support at both ends of bath

• Cloud Built-in Standard



  CLOUD BUILT-IN STANDARD :
  • 9 Jet
  • Length: 2030mm
  • Width: 1040mm
  • Height: 610mm
  • Shipping weight: 120KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 2
  • Whirlpool fittings: 5
  • Micro jets (SHIATSU): 12
  • Water capacity: 860L/MIN
  • Five 90 litres per minute Centre Air Jets
  • 12 Shiatsu Micro Jets
  • Two individual Water Intakes
  • Two On/Off Jet Button
  • Two Air Controls
  • Silent Filler (optional)
  • Inline Heater
  • Pop Up Waste (included)
  • Convex Back Support at both ends of bath

• Cloud Island Delux



  CLOUD ISLAND DELUX :
  • 17 Jet
  • Length: 2030mm
  • Width: 1040mm
  • Height: 610mm
  • Tub weight: 65KG
  • Shipping weight: 100KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 1
  • Whirlpool fittings: 3
  • Micro jets (SHIATSU): 6
  • Water capacity: 430L/MIN
  • Three 90 litres per minute Centre Air Jets
  • Shiatsu Micro Jets
  • One Water Intake
  • One On/Off Jet Button
  • Two Air Controls
  • Silent Filler (optional)
  • Inline Heater
  • Pop Up Waste (included)
  • Convex Back Support at both ends of bath

  •  Cloud Island Delux Datasheet

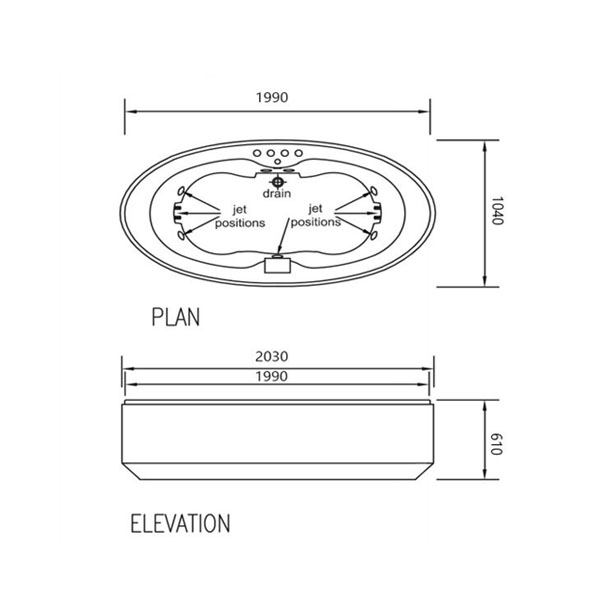

  •  Cloud Island Delux Line Diagram

• Cloud Island Standard



  CLOUD ISLAND STANDARD :
  • 9 Jet
  • Length: 2030mm
  • Width: 1040mm
  • Height: 610mm
  • Tub weight: 65KG
  • Shipping weight: 100KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 1
  • Whirlpool fittings: 3
  • Micro jets (SHIATSU): 6
  • Water capacity: 430L/MIN
  • Three 90 litres per minute Centre Air Jets
  • Shiatsu Micro Jets
  • One Water Intake
  • One On/Off Jet Button
  • Two Air Controls
  • Silent Filler (optional)
  • Inline Heater
  • Pop Up Waste (included)
  • Convex Back Support at both ends of bath

  •  Cloud Island Standard Datasheet

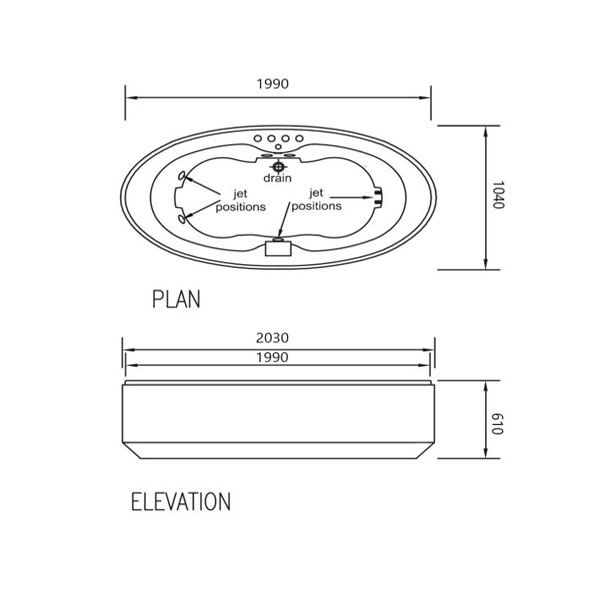

  •  Cloud Island Standard Line Diagram

• Moderno Built-in



  MODERNO BUILT-IN :
  • Length: 1820mm
  • Width: 900mm
  • Height: 610mm
  • Tub weight: 44KG
  • Shipping weight: 62KG
  HYDRAULICS
  • Capacity: 205L
  • Suction fittings: 1
  • Micro jets: 6
  • Whirlpool fittings: 3
  • Water capacity: 400L/MIN
  • Three 90 litre per minute Centre Air Jets
  • One Water Intake
  • On/Off Jet Button
  • Two Air Controls
  • Silent Filler
  • Inline Heater (not required)
  • Vertical Air System (optional)
  • Pop Up Waste (included)
  • Six Shiatsu Micro Jets

  •  Moderno Built-in Datasheet
  •  Moderno Built-in Line Diagram

• Moderno Duo Built-in



  MODERNO DUO BUILT-IN :
  • Length: 1830mm
  • Width: 1080mm
  • Height: 600mm
  • Shipping weight: 90KG
  HYDRAULICS
  • Capacity: 280L
  • Suction fittings: 1
  • Micro jets: 6
  • Whirlpool fittings: 3
  • Water capacity: 400L/MIN
  • Three 90 litre per minute Centre Air Jets
  • One Water Intake
  • On/Off Jet Button
  • Two Air Controls
  • Silent Filler
  • Inline Heater (not required)
  • Vertical Air System (optional)
  • Pop Up Waste (included)
  • Six Shiatsu Micro Jets

  •  Moderno Duo Built-in Line Diagram

• Moderno Duo Island



  MODERNO DUO ISLAND :
  • Length: 1830mm
  • Width: 1080mm
  • Height: 600mm
  • Shipping weight: 90KG
  HYDRAULICS
  • Capacity: 280L
  • Suction fittings: 1
  • Micro jets (SHIATSU): 6
  • Whirlpool fittings: 3
  • Water capacity: 430L/MIN
  • Air capacity: 130L/MIN
  • Three 90 litre per minute Centre Air Jets
  • One Water Intake
  • On/Off Jet Button
  • Two Air Controls
  • Silent Filler (optional)
  • Inline Heater (optional)
  • Vertical Air System (not available)
  • Pop Up Waste (included)
  • Six Shiatsu Micro Jets
  • Complete surround with access to the Pump via Access Panel at Micro Jet end of bath.
  • Place this island bath in the centre of a bathroom or against a wall.

  •  Moderno Duo Island Datasheet

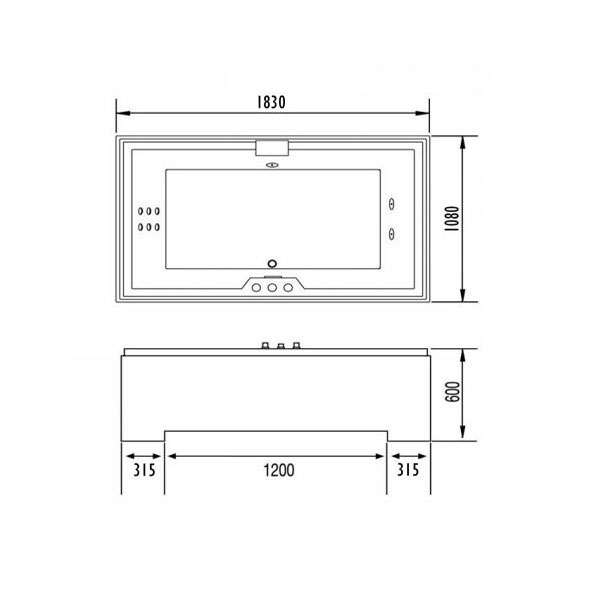

  •  Moderno Duo Island Line Diagram

• Moderno Island



  MODERNO ISLAND :
  • Length: 1820mm
  • Width: 900mm
  • Height: 610mm
  • Shipping weight: 90KG
  HYDRAULICS
  • Capacity: 205L
  • Suction fittings: 1
  • Micro jets (SHIATSU): 6
  • Whirlpool fittings: 3
  • Water capacity: 430L/MIN
  • Three 90 litre per minute Centre Air Jets
  • One Water Intake
  • On/Off Jet Button
  • Two Air Controls
  • Silent Filler (optional)
  • Inline Heater (optional)
  • Pop Up Waste (optional)
  • Six Shiatsu Micro Jets
  • Complete surround with access to the Pump via Access Panel at Micro Jet end of bath.

  •  Moderno Island Datasheet

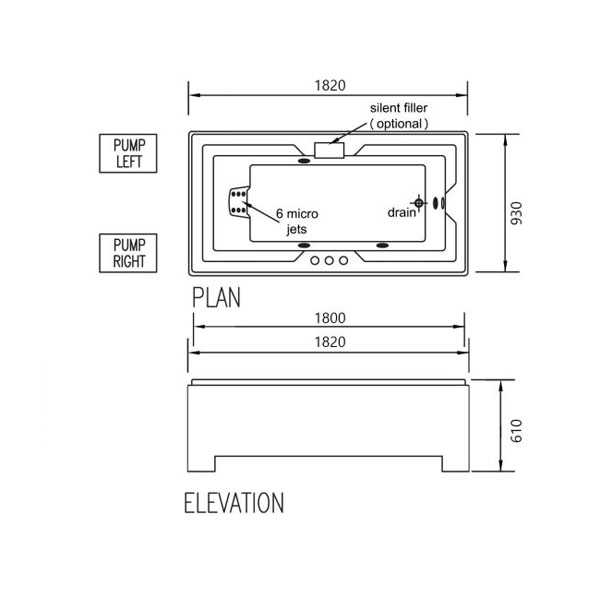

  •  Moderno Island Line Diagram

• Parisienne Built-in Delux



  PARISIENNE BUILT-IN :
  • 17 Jet
  • Length: 1800mm
  • Width: 1020mm
  • Height: 450mm
  • Shipping weight: 100KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 1
  • Micro jets (SHIATSU): 6
  • Whirlpool fittings: 3
  • Water capacity: 430L/min
  • Air capacity: 130L/min
  • Three 90 litre per minute Centre Air Jets
  • Six Shiatsu Micro Jets
  • One Water Intake
  • On/Off Jet Button
  • Two Air Controls
  • Silent Filler
  • Inline Heater (optional)
  • Two Headrests (optional)
  • Vertical Air System (optional)
  • Pop Up Waste (included)
  • Convex Back Support at both ends of bath

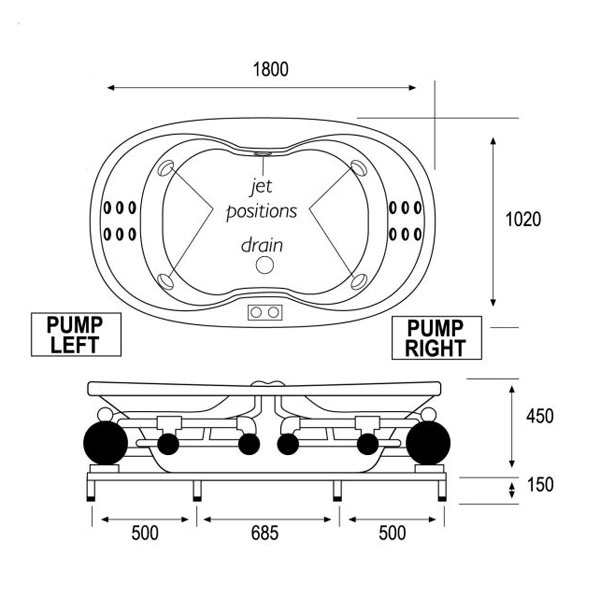

  •  Parisienne Built-in Delux Line Diagram

• Parisienne Built-in Standard



  PARISIENNE BUILT-IN :
  • 9 Jet
  • Length: 1800mm
  • Width: 1020mm
  • Height: 450mm
  • Shipping weight: 100KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 1
  • Micro jets (SHIATSU): 6
  • Whirlpool fittings: 3
  • Water capacity: 430L/min
  • Air capacity: 130L/min
  • Three 90 litre per minute Centre Air Jets
  • Six Shiatsu Micro Jets
  • One Water Intake
  • On/Off Jet Button
  • Two Air Controls
  • Silent Filler
  • Inline Heater (optional)
  • Two Headrests (optional)
  • Vertical Air System (optional)
  • Pop Up Waste (included)
  • Convex Back Support at both ends of bath

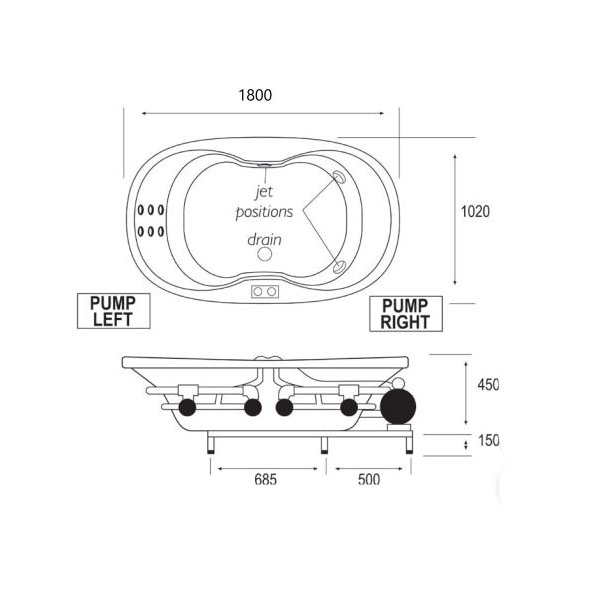

  •  Parisienne Built-in Standard Line Diagram

• Parisienne Island Delux



  PARISIENNE ISLAND DELUX :
  • 17 Jet
  • Length: 1800mm
  • Width: 1020mm
  • Height: 600mm
  • Shipping weight: 125 KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 1
  • Micro fittings (SHIATSU): 6
  • Whirlpool fittings: 3
  • Water capacity: 430L/MIN
  • Air capacity: 130L/MIN
  • Three Centre air jets
  • Six Shiatsu micro jets
  • On/Off jet button
  • Two Air controls
  • Convex back support at both ends
  • Pop up waste

  •  Parisienne Island Delux Datasheet

• Parisienne Island Standard



  PARISIENNE ISLAND STANDARD :
  • 9 Jet
  • Length: 1800mm
  • Width: 1020mm
  • Height: 600mm
  • Shipping weight: 125 KG
  HYDRAULICS
  • Capacity: 300L
  • Suction fittings: 1
  • Micro fittings (SHIATSU): 6
  • Whirlpool fittings: 3
  • Water capacity: 430L/MIN
  • Air capacity: 130L/MIN
  • Three Centre air jets
  • Six Shiatsu micro jets
  • On/Off jet button
  • Two Air controls
  • Convex back support at both ends
  • Pop up waste

  •  Parisienne Island Standard Datasheet

• Venus



  VENUS :
  • Length: 2120mm
  • Width: 1940mm
  • Height: 600mm
  • Shipping weight: 132 KG
  HYDRAULICS
  • Capacity: 425L
  • Suction fittings: 2
  • Micro jets (SHIATSU): 10
  • Whirlpool fitttings: 6
  • Water capacity: 720L/min
  • Air capacity: 192L/min
  • Six 90 litre per minute Centre Air Jets
  • Ten Shiatsu Micro Jets
  • Two individual Water Intakes
  • Two On/Off Buttons
  • Two Air Controls
  • Silent Filler
  • Inline Heater (optional)
  • Two Headrests (included)
  • Two pumps
  • Sound Proof Front Panel (optional)
  • Vertical Air System (optional)
  • Pop Up Waste (included)
  • Recessed Jets at both ends of bath

  •  Venus Datasheet

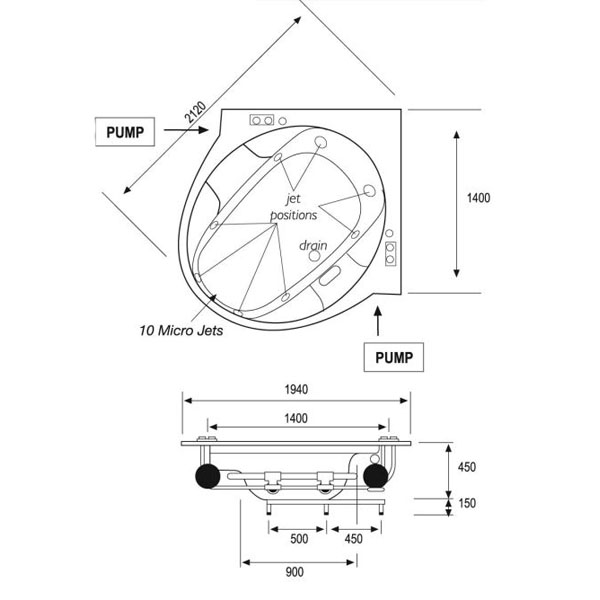

  •  Venus Line Diagram
