Window Installation
Procedures
|
PROFILE |
 |

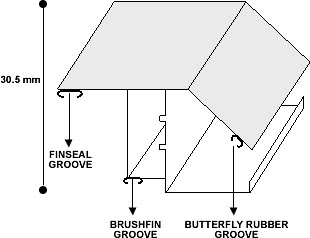

- BETCRETE EXTRUDED PROFILE
- 6063 T6 ALLOY
- 30.5mm SASH
- DOUBLE SEALED WITH FINSEAL &
BRUSHFIN
- BRIGHT ZINC 4-BAR HINGE OR 304
FRICTION STAY
- EXTRUDED WINDOW HANDLE & CATCH
 |
| |
|
GLASS OPTIONS
(AS PER SABS STANDARD)
|
| MAX
SIZE OF PANE |
TYPE
OF GLASS |
COLOUR OPTIONS |
| 0.75mm |
3mm Clear Glass
|
White |
VP1001 |
| 1.50mm |
5mm Clear Glass
|
Natural |
VP7169 |
| 2.10mm |
5mm Clear Glass
|
Bronze
|
VP6110 |
| 3.20mm |
6.5mm PVB Safety
Glass (or where required) |
Charcoal |
VP7107 |
|
Other colours available on request |
|
Window |
| |
|
 |
|
Sample:
BT69
External Size: 590 x 890 mm
|
Cross Section
(with estimate sizes) |
| |
|
|
|
|
|
WITH BETCRETE
SILL
|
WITHOUT
BETCRETE SILL
|
| DAMP
PROOFING (DPC) |
|
DPC to be done as per illustrated
drawing
|
 |
 |
| |
HORIZONTAL
CROSS SECTION
THROUGH WALL AND FRAME |
VERTICAL CROSS
SECTION
THROUGH WALL AND FRAME |
|
