Popular Flashings Available in 0.6 or 0.8mm thick galvanised or colour

Ridge or Hipcap
(For excessive expansion contact brownbuilt)
Valley Gutter

Exterior Corner Trim
Internal Corner Trim


Side Wall Flash Detail

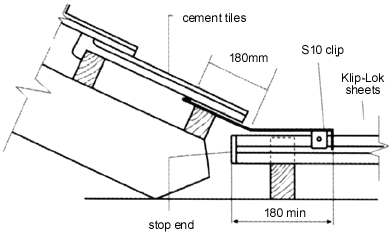

Headwall Flash Detail


Apron Flash

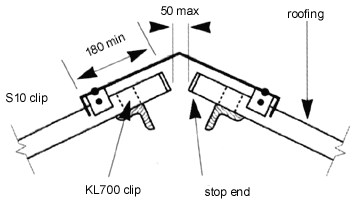

Apex Flash

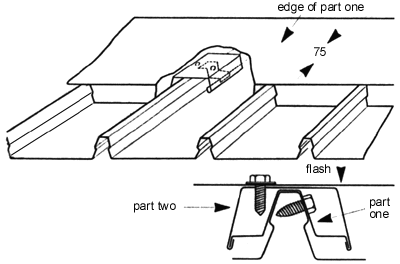

Sliding Bracket
* When sheet lengths are over 30 m flashings must be fixed to sheets using sliding brackets
Gutters and Fascias
Klip-Lok in addition offers a fascia gutter and fascia capping, with horizontal stiffening ribs rolled in, giving a clean unbroken surface.

Used both as gutter and barge capping, the fascia gutter permits clean lined eaves for an attractive finish. With the gutter attached by means of the appropriate concealed bracket and verandah bolts to the sheeting trough and the concealed support clip pop rivetted to the the narrow flute of the sheeting at 1218mm centres.

Tools
Notching tool
Used to notch out sheet rib profile in the flanges of flashings to fit over sheet ribs
Turn-down tool
Used to lip sheets downwards at the eaves to prevent water flowing back on the underside of the sheets
Turn-up tool
Used to stop end sheets upward at the top of the roof slope to prevent water being blown up and over sheet end
