Supa Clad
|
 |
|
|
|
|
| Available In: Galvanised,
Zincalume (712mm Cover), Aluminium, Classicoat Colour Coated, Translucent Sheeting
(Polycarbonate & GRP) |
|
|
Light
Industrial (0.5mm) |
Heavy
Industrial (0.6mm) |
| Roofs |
|
|
| Single Span |
1 800 |
2 000 |
| End Span |
2 100 |
2 300 |
| Internal Span |
2 200 |
2 600 |
| Cantilever |
270 |
300 |
|
|
|
| Walls |
|
|
| Single Span |
2 400 |
2 500 |
| End Span |
2 900 |
3 100 |
| Internal Span |
3 100 |
3 400 |
| Cantilever |
1 100 |
1 200 |
|
|
Loading in accordance with SABS 0160
|
|
|

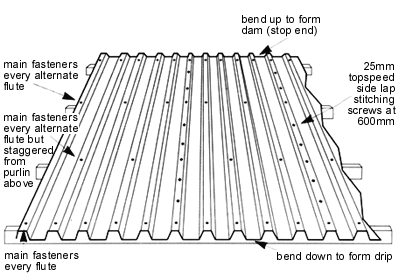

Assembly - Roof
|
|
|
Note: Main Fasteners:
65 mm LG Topspeed screws to be used for steel purlins
90 mm LG Topspeed screws to be used for timber purlins
26 mm dia Bonded washers to be used for roof Main fasteners
Side Lap Fasteners:
25 mm LG Topspeed screws to be used for side lap stitching
19 mm dia bonded washers to be used for side lap stitching
|
|
|

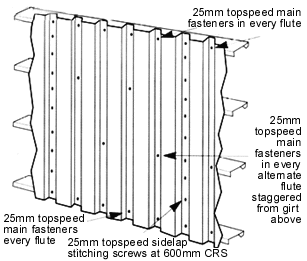

Assembly - Side Cladding
|
|
Note: Main Fasteners:
25 mm LG Topspeed screws to be used for steel purlins
65 mm LG Topspeed screws to be used for timber purlins
19 mm Bonded washers to be used
Side Lap Fasteners:
25 mm LG Topspeed screws to be used for side lap stitching
19 mm dia bonded washers to be used for side lap stitching
|
|
|
