Deckshield ED
Exposed Deck (2mm)

PRODUCT DATA SHEET

Description
Deckshield ED is a BBA approved solvent free polyurethane flexible car park deck coating system which provides a colourful crack bridging, waterproof wearing surface for use over exposed decks of multi-storey car parks.

Uses
To cosmetically enhance, reduce noise and waterproof multi-storey car parks world wide.  Deckshield makes multi-storey car parks lighter, safer environments to visit.  Deckshield is suitable for refurbishment of existing cap parks an on new construction projects.

Benefits
• Aesthetically attractive - brightens up dull, dark, musty car parks
• Reduces noise - stops tyre squeal
• BBA tested and approved
• Hard wearing - abrasion resistant
• Solvent free with Fast track installation
• Can be used over existing asphalt substrates
• Fire and slip resistant
• Resistant to cracking - flexible waterproof membrane
• Excellent bond strength

Project references
Multi-storey car parks world wide: Kuala Lumpur International Airport; Istanbul Airport; Tsing Yi Car Park, Hong Kong; NCP; Tesco; Marks and Spencer.

Model Specification
Product: Deckshield ED system
Finish: Gloss
Thickness: 2mm
Colour: Various
Preparatory work and application in accordance with suppliers' instructions.

The applied colours may differ slightly from the examples shown above. Contact our customer services for a true colour sample or a special colour match.

Installation Service
The installation should be carried out by a Flowcrete approved contractor with a documented quality assurance scheme.  Obtain details of our approved contractors by contacting our customer service team or enquiring via our web site www.flowcrete.com

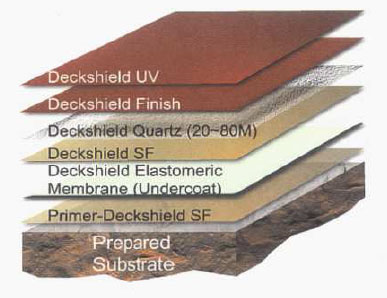

Product Requirements for this system
Primer: Deckshield SF @ 0.75kg/m²
For concrete moisture >4% - Hydraseal DPM @ 0.4kg/m²
Deckshield Elastomeric Membrane @1.0kg/m²
Deckshield Quartz 0.3 - 0.65mm @ 2kg/m²
Deckshield finish Top Coat @ 0.5kg/m²
Deckshield UV 0.12kg/m²

Detailed application instructions are available upon request.

Focus on the Floorzone
Flowcrete Group plc are world leaders in specialist industrial and commercial flooring. Systems available include: underfloor heating systems, floor screeds, surface damp proof membranes,
decorative floor finishes, seamless terrazzo, car park deck waterproofing, corrosion protection systems… to name just a few. Our objective is to satisfy your Floorzone needs.

Substrate Requirements
Concrete slabs and screeds should be a minimum of 25 N/mm², free from laitance, dust and other contamination. Substrate should be dry to 75% RH as per BS8204.

Resistance to cracking
No failure of Deckshield membrane at 2.5mm crack width, which exceeds the normal BS8110: Part 1; 1985 design parameter of 0.3mm.

System Performance Guide
Complies with BS 8204-6/FeRFA category 5.
The table below shows how well the system complies with different characteristics.
A scale of 1 - 5 where 5 is the best value.
5 Excellent, 4 Very good, 3 Good (Pass), 2 Fair, 1 Poor

Environmental considerations
The finished system is assessed as non-hazardous to health and the environment. The long service life and seamless surface reduce the need for repairs, maintenance and cleaning.
Environmental and health considerations are controlled during manufacture and application of the products by Flowcrete staff and fully trained and experienced contractors.

Important Note
Flowcrete's products are guaranteed against defective materials and manufacture and are sold subject to its standard Terms and Conditions of Sale, copies of which can be obtained on request.

Technical information
The figures that follow are typical properties achieved in laboratory tests at 20°C and at 50% Relative Humidity.

Speed of cure

Aftercare - Cleaning and Maintenance
Clean regularly using a single or double headed rotary scrubber drier in conjunction with a mildly alkaline detergent. Refer to Flowcrete Cleaning and Maintenance Datasheet.

Further information
To ensure you are specifying a fit for purpose flooring for your project please consult our Technical Advisors on the number below or visit our website to register your interest in specifying one of the most durable floors on the market.

Health and Saftey
Some of the components of this product may be hazardous during mixing and application.  Please consult the relevant Health and Safety Datasheet available from Flowcrete on request and sent with each delivery.
