InstaVault

KEY FEATURES:
• High quality protection using modern high specification materials and technology.
• Can be integrated into various environments (for example new buildings, existing buildings and to strengthen strong room units).
• Manufactured to correspond with the latest security standards.
• The InstaVault can be individually designed to any shape or size.
• Available in a range of security categories. Standard category available SABS 4 or 5.

PLANNING AND CONCEPTION:
The first stage of the project involves a Chubbsafes vault consultant conducting a client visit. This includes an initial discussion focusing on the client’s security requirements and objectives. The consultant will then suggest a vault room design which conforms to all of your needs. Upon design finalisation, the client will be presented with a project schedule.

INSTALLATION - THE COMPLETE SERVICE:
Our vault rooms are delivered and installed by trained Chubbsafes installation teams. Prior to installation, a full and comprehensive
installation survey will be undertaken and incorporated into any proposal.
The flexibility of the installation process is evidence of Chubbsafes commitment towards ensuring the cost and time efficient completion of your project. Throughout the process our Chubbsafes consultant will be on hand to discuss all aspects of your project.

An increasing number of institutions and companies are concerned about protecting their high value assets. Banks, pharmaceutical companies and commercial businesses are examples of those who have recently expressed such concerns.
In response to this issue, Chubbsafes have designed the InstaVault room. Easy to install and packed full of quality features, this bespoke and future orientated solution is proven to meet the demand for optimum security. After your purchase, you can be assured that Chubbsafes will constantly work with you towards meeting your security objectives. Such customer support has led to the InstaVault being the prefered choice for customers wanting a vault room.....

ADVANTAGES OF PREFABRICATED CONSTRUCTION:
1. Fast assembly or disassembly.
2. Good utilisation of existing space.
3. High volume of use due to reduced wall thickness.
4. Future expansion - the vault room can be increased in size by adding more panels.

QUALITY FEATURES:

Testing:
The vault rooms are certified and tested by the SABS to the latest security standard.

Construction:
The InstaVault room consists of modular panels which are assembled together using a bolted construction. On completion, the appearance of the vault can be improved by traditional methods e.g. plasterboard cladding or blockwork and plaster finish. The room is then secured by a vault door to the same security standard. Depending on the size of the InstaVault, emergency or additional doors can be incorporated. Every section of the Chubbsafes InstaVault has a burglary resistance equivalent to either the SABS Category 4 or SABS Category 5 vault door.

Wall panels:
The panels are constructed from steel pans filled with a reinforced Chubbsafes Borox SP barrier material matrix. This construction
remains uniform throughout all grades.

Floor and Roof panels:
The panels are constructed from the same material as the wall panels. Roof panels are manufactured to the maximum lengths as
provided in the product specification. Roof spans exceeding the panel lengths will require an internal support stucture. This can be designed to suit the internal layout of the vault.

DESIGN FEATURES:

Size and layout:

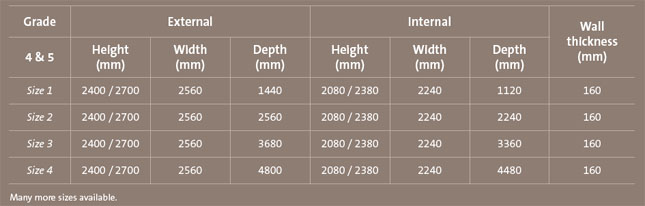

The InstaVault can be supplied in a range of standard sizes or on a bespoke basis, to suit any shape or size, subject to a full
and comprehensive survey.

Finish:
Externally, the panels are as cast semi rough finish. Final finish by client or other if required.

Design:
The Chubbsafes InstaVault is designed to overcome the following potential areas of weakness:

• Corner Joints - there are no joints at the corners as all panels are fastened at the side sections.
• Panel connections - These are made internally so that no fixings are visible from the exterior. Panels have a stepped   construction using half lap joints so that fixings are fuly protected by the barrier.
• Roof and Floor - These sections are recessed into the side sections to prevent side access and again the panels are stepped.
• Barrier Thickness - The InstaVault has a standard panel thickness of 160mm thick barrier material.
• Fire Resistance - SABS Group 3 tested in a furnace where temperatures exceed 1000C over a period of two hours.

Layout drawings:
On agreement of specification and layout, schematic drawings can be raised for client approval.

Vault configuration:
Dependant on the project requirements, Insta vaults can be supplied and installed in both 5 sided and 6 sided structures.
