Pocket Doors - The finishing touch to your installation |
| |
| Hufcor pocket doors have a steel frame. Panel faces are factory finished with the same materials as the partitions or may be field finished to match the perimeter walls. |
| |
| |
TIP: |
| |
|
| |
When designing a pocket to store a partition, allow enough width for easy access and panel movement. Prevent pinched fingers and scraped knuckles by adding a minimum of 254mm to the width of the widest panel - more if you can spare it. The people moving the panels will appreciate it! |
|
| |

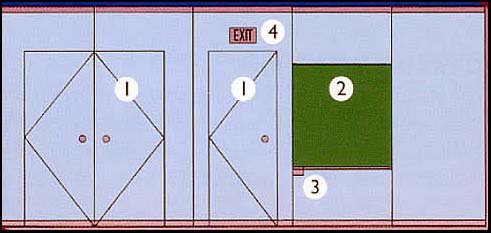

| Operable Partition Options |
| |
|
| |
| 1. |
ADA Compliant Pass Door |
| |
|
| |
Available in single or double doors, Hufcor pass doors comply with ADA requirements and are of the same construction and finish as the panels. Options include automatic door closers, locks and prep for windows. No threshold required. |
| |
|
| 2. |
Work Surfaces |
| |
|
| |
Chalkboard, Dry Marker Board, Tackboards, Hufcor work surfaces are inset and include a full-width pen or chalk rail. The chalk and dry marker boards are made of 28 ga. porcelain enamel steel and resist damage, abrasion, scratching and colour fading and wipe clean with a dry cloth or eraser. |
| |
|
| 3. |
Eraser Pocket |
| |
|
| |
This handy inset pocket holds a standard chalkboard eraser or other work surface accessories. |
| |
|
| 4. |
Recessed Illuminated Exit Signs |
| |
|
| |
Self-luminous, non-electrical exit signs are available for use on pass doors. They may be surface mounted or inset. Choose either green or red with white letters. |
|
| |
|
| |

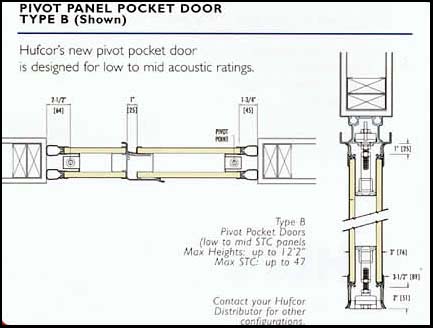

| Pocket doors cover the opening of the partition storage area. Hufcor offers two styles of pocket doors - one for panels with higher acoustic ratings, the second for lower to mid-range rated panels. Both styles may be factory finished to match the partitions, or may be field finished to match the perimeter walls. |
| |

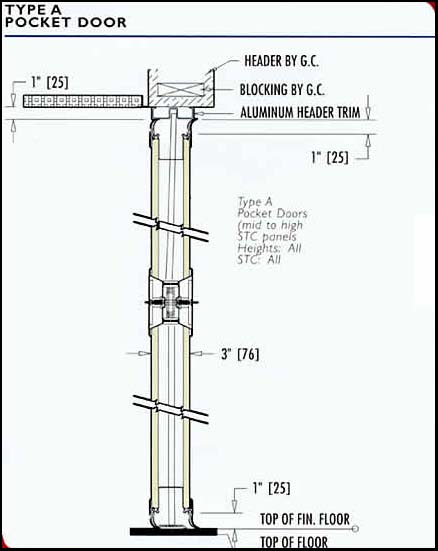

| Type A Specification |
| |
| A. |
Pocket doors shall be nominally 76mm thick with frames of 18ga. painted steel. |
| |
|
| B. |
Faces are of min. 20ga. electro-galvanized steel laminated to gypsum backing. Face finish shall wrap around the vertical panel edges and require no vertical trim. |
| |
|
| C. |
Top and bottom continuous contact seals. |
| |
|
| D. |
A retractable internal mechanism shall hold the door(s) closed. A jamb plate shall be attached to the floor to capture the bottom mechanism. |
| |
|
| E. |
Jambs shall be of 6063-T6 clear or bronze anodized aluminium and be adjustable + or - 6mm. |
| |
|
| F. |
Weight shall be 43.6Kg/mē. |
|
| |

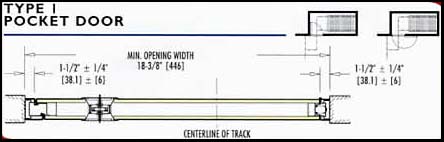

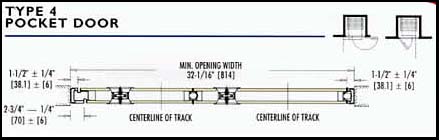

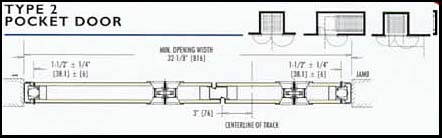

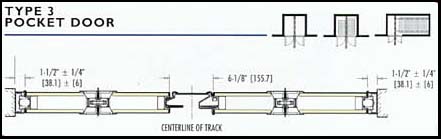

| CONFIGURATIONS |
| |
| Shown below are the most common confurations, however, others may be customized for your particular project. |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
