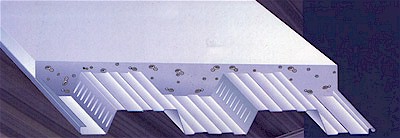

Bond-Dek Composite Deck

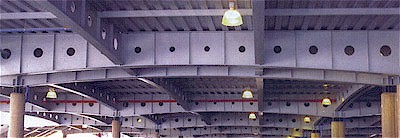

  • Bond-Dek is a new composite steel flooring system for multi-storey steel or concrete buildings.
  • Bond-Dek's unique side-lap interlocking system provides for fast and simple construction. The speed of erection results in major labour cost savings.
  • Bond-Dek is able to span up to 3 metres unsupported under wet concrete with a minimum depth of 65mm over the profile.
  • Bond-Dek will accept most floor service systems.
  • Bond-Dek is available in a galvanised coated steel, preprimed for painting on one side, and stainless steel 0,8 mm, 1,0mm and 1,2mm thick.
  • Bond-Dek has been fire tested by the CSIR and has qualified for a rating of 120 minutes.
  • Brownbuilt has been assessed and certified as complying with ISO9002 Quality Management System.
  • Brownbuilt also offers a complete design service if required.
  • The Bond-Dek profile displaces 0,037m³ per m² of deck.

Refer to the Bond-Dek Installation procedure before proceeding with erection of panels.
