FACTORYLITE
Industrial Roofing Insulation

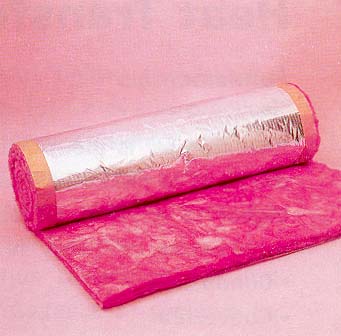

 A 50mm think pink fibreglass insulation bonded on one side to reinforce
kraft/aluminium foil. Manufactured in 1320mm wide rolls with a cover of 1200mm and in any
length from 8 metres up to 25 metres in 100mm increments. Factorylite is the updated and improved version of Flexible Foil Building Insulation.
APPLICATIONS:
- Industrial roofing insulation
- Over purlin installation (new buildings)
- Between purlin installation (existing building)
BENEFITS:
- Non-combustible. Conforms to SABS 0177 Part V
- Fire index conforms to SABS 0177 Part III (Class 1)
- Saves energy bills by reducing heat losses
- Improves- acoustics for better working environment
- Maintenance free
- Non-corrosive
- Made to size to reduce wastage
- Lightweight
- Factorylite can also be supplied with alternative facings
INSTALLATION PROCEDURE
- Begin at the roof apex. Straining wires should be 300mm apart and fixed at top and bottom.
- Roll Factorylite over the purlins ensuring an overlap on the apex and then clamp Factorylite between two battens at the top of the roll.
- Fasten Factorylite to the top purlin with a hoop iron.
- Pull down with even tension to take out the slack. Clamp Factorylite between two battens at the bottom of the roll.
- Attach Factorylite to the bottom purlin with a hoop iron.
- Fold up the overlapping foil.
- Keep both edges level and staple at the bottom.
- Fold over and tuck in between sections and staple again.
| Density kg/m3 |
Thickness mm |
Thermal Resistance R-value |
Thermal Conductivity k-Value |
Noise Reduction Coefficient
NRC Value |
| 12 |
50 |
1.25 |
0.040 |
0.65 |
Available in 75mm and 100mm thickness on request |
