SOUNDLITE
Ceiling Tiles

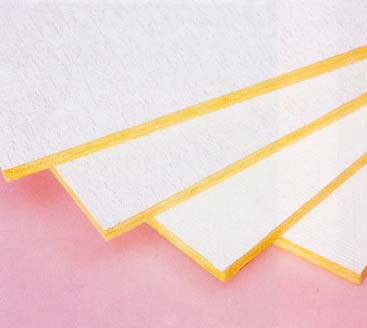

 Ceiling tiles manufactured from
non-combustible glass fibres and binders which are lightweight and resilient. A decorative vinyl facing
available in two standard finishes, coral and ripple, provides a durable surface. Soundlite panels are
available in 25mm and 40mm thickness in standard grid sizes.
| |
|
|
|
 |
 |
 |
 |
| Coral |
Ripple |
Pebble |
Finesse |
APPLICATIONS:
- Domestic, commercial and industrial ceilings
BENEFITS:
- Non-combustible. Conforms to SABS 0177 Part V
- Fire index conforms to SABS 0177 Part III (Class 1)
- Exceptional acoustical properties
- Can be pin perforated to further improve sound absorption
- High thermal resistance
- Suitable for use in areas of high relative humidity
- System tested (in grid)
| Density kg/m3 |
Thickness
mm |
Thermal
Resistance R-Value |
Sound
Absorption Coefficient |
Noise Reduction
Coefficicient NRC Value |
Sound Reduction
Index R |
| Frequency in Hz |
| 125 |
250 |
500 |
1000 |
2000 |
| 50 |
25 |
0.74 |
0.12 |
0.65 |
0.62 |
0.74 |
0.67 |
0.65 |
Rw = 17 dB |
| 50 |
40 |
1.18 |
0.47 |
0.59 |
0.93 |
0.86 |
0.61 |
0.75 |
Rw = 19 dB |
| 80 |
25 |
0.78 |
0.20 |
0.55 |
0.46 |
0.68 |
0.55 |
0.55 |
|
| PIN PERFORATED |
| 50 |
25 |
0.74 |
0.09 |
0.24 |
0.68 |
1.14 |
1.00 |
0.75 |
|
| 50 |
40 |
1.18 |
0.27 |
0.66 |
1.11 |
1.14 |
0.99 |
0.95 |
|
- Standard sizes are 600 x 600, 1200 x 600 and 1500 x 500
- Special sizes available on request.
|
|
