KWIKOT 600 DUAL
MEGAFLO SUPREME
MEGAFLO ROUND
MEGAFLO 450 LITRE
PRISMA POINT OF USE






AESTHETICS:

Robust galvanised outer casement.

INSTALLATION:

  • Kwikot 600 Dual electric water heaters are designed for horizontal floor, horizontal or vertical wall or roof installations.
  • High pressure hot water at all your hot water outlets - kitchen, bathroom, laundry, granny flatlet and domestic accommodation; commercial canteens and ablutions.
  • Kwikot 600 Dual is designed for optimum performance with your new shower, bath, basin and sink mixer.
FEATURES:
  • Dual product - a single product for both vertical and horizontal installations
  • High pressure - manufactured to SABS 151 - 400kPa with design features to operate to 600kPa
  • Cylindrical galvanised outer casement
SPECIFICATION:

CODE
SIZE
()
DIMENSIONS
(L X DIAMETER) (mm)
MASS
(kg)
KW LOAD
ESG - 050
50
  580 x 460
21
2kW
ESG - 100
100
  970 x 460
30
2kW
ESG - 150
150
  1370 x 460
39
3kW
EF200-2D
200
  1380 x 540
47
4kW
EF250-RD
250
  1640 x 540
64
4kW










AESTHETICS:

White cromodek finish with durable ABS vacuum formed ends finished in appliance white.

INSTALLATION:

  • Megaflo Supreme electric water heaters are designed for horizontal floor, horizontal or vertical wall or roof installations. (Wall hanging brackets available on request)
  • Latest design for mixers that operate at high pressure. Megaflo Supreme is designed for optimum performance with your new shower, bath, basin and sink mixer.
FEATURES:
  • Dual product - a single product for both vertical and horizontal installations
  • High pressure - manufactured to SABS 151 - 400kPa with design features to operate to 600kPa
  • Rectangular Cromadek outer casement
SPECIFICATION:

CODE
SIZE
()
DIMENSIONS
(L X DIAMETER) (mm)
MASS
(kg)
KW LOAD
MF-100D2
100
780 x 525 x 525
32
2kW
MF-150D2
150
1070 x 525 x 525
41
3kW
MF-200D2
200
1380 x 525 x 525
52
4kW










AESTHETICS:

Cylindrical Cromadek outer casement finished in appliance white.

INSTALLATION:

  • Megaflo Round electric water heaters are designed for horizontal floor, horizontal or vertical wall or roof installations.
  • Latest design for mixers that operate at high pressure. Megaflo Round is designed for optimum performance with your new shower, bath, basin and sink mixer.
FEATURES:
  • Dual product - a single product for both vertical and horizontal installations
  • High pressure - manufactured to SABS 151 - 400kPa with design features to operate to 600kPa
  • Cylindrical Cromodek outer casement with end domes powder coated
SPECIFICATION:

CODE
SIZE
()
DIMENSIONS
(L X DIAMETER) (mm)
MASS
(kg)
KW LOAD
ESW - 050
50
580 x 460
21
2kW
ESW - 100
100
970 x 460
30
2kW
ESW - 150
150
1370 x 460
40
3kW











Megaflo 450 horizontal


Megaflo 450 vertical

For larger commercial, domestic and industrial hot water installations.

AESTHETICS:

Galvanised outer casement. There are two seperate products for vertical and horizontal installations.

INSTALLATION:

  • For medium to large domestic houses; guest houses; game lodges and industrial ablution fascilities where a circulating pump is required
  • This product should not be attached to a wall
FEATURES:
  • High pressure
  • Complies with SABS 151-1992
SPECIFICATION:

CODE
SIZE
()
DIMENSIONS
(L X DIAMETER) (mm)
MASS
(kg)
KW LOAD
MF450 Vertical
450
1900(H) x 720(D)
124
18kW
MF450 Horizontal
450
1860(L) x 870(H) x 720(D)
129
12kW

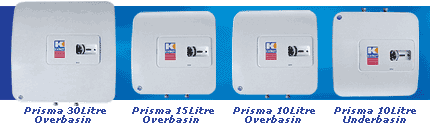

AESTHETICS:

Aesthetically pleasing - neat durable ABS outer casing finished in appliance white. For installations where smaller amounts of hot water are required and where space is confined. Externally adjustable temperature settings with "on/off" switch- supplies water at varying temperatures to suit your needs.

INSTALLATION:

  • underbasin with mixer
  • overbasin with stopcock and spout or with mixer

FEATURES:

Hot water at point of use - eliminates long waiting periods for hot water to reach tap, therefore saving water and electricity. Simple over or under basin installations - suitable for the DIY handyman.

SPECIFICATION:

CODE
SIZE
()
DIMENSIONS
(mm)
MASS
(kg)
KW LOAD
PRX 10 OB
10
360 x 360 x 254
7,6
1,2kW
PRX 10 UB
10
360 x 360 x 254
7,6
1,2kW
PRX 15 OB
15
360 x 360 x 300
7,8
1,2kW
PRX 30
30
445 x 445 x 360
13,7
1,5kW
PRX 13 SH
13
487 x 320 x 230
4,0
1,5kW
