Hi-Flo pressure control valves reduce the incoming water pressure to the pressure rating of your Megaflo Supreme; Megaflo Round or Kwikot 600 Dual geyser. The Hi-Flo valve facilitates the expansion of the hot water as the geyser advances through the heating cycle.

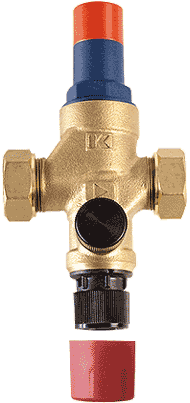

Hi-Flo MONO Pressure Control Valves with Integral Expansion Relief. The relief valve incorprates a flushing mechanism.
|
CODE
|
DESCRIPTION
|
|
KH3.112
|
22mm CxC PCV with expansion relief, 200kPa
|
|
KH3.104
|
15mm CxC PCV with expansion relief, 400kPa
|
|
KH3.114
|
22mm CxC PCV with expansion relief, 400kPa
|
|
KH3.106
|
15mm CxC PCV with expansion relief, 600kPa
|
|
KH3.116
|
22mm CxC PCV with expansion relief, 600kPa
|
Hi-Flo MULTI Pressure Control Valves with Integral Isolating Valve and Expansion Relief. The relief valve incorprates a flushing mechanism.
The integrated isolating valve is an additional feature that facilitates servicing of the geyser.
|
CODE
|
DESCRIPTION
|
|
KH3.212
|
22mm CxC PCV with integral isolating valve and expansion relief, 200kPa
|
|
KH3.214
|
22mm CxC PCV with integral isolating valve and expansion relief, 400kPa
|
|
KH3.224
|
20mm MI PCV with integral isolating valve and expansion relief, 400kPa
|
|
KH3.216
|
22mm CxC PCV with integral isolating valve and expansion relief, 600kPa
|
Hi-Flo INDUSTRIAL Pressure Reducing valves 15mm to 100mm, adjustable from 150kPa to 600kPa, with a pressure set indicator on the cartridge and a pressure gauge port on either side of the body.
|
CODE
|
DESCRIPTION
|
|
KH8.150
|
15mm Adjustable Pressure Reducing Valve 150kPa – 600kPa
|
|
KH8.200
|
20mm Adjustable Pressure Reducing Valve 150kPa – 600kPa
|
|
KH8.250
|
25mm Adjustable Pressure Reducing Valve 150kPa – 600kPa
|
|
KH8.320
|
32mm Adjustable Pressure Reducing Valve 150kPa – 600kPa
|
|
KH8.400
|
40mm Adjustable Pressure Reducing Valve 150kPa – 600kPa
|
|
KH8.500
|
50mm Adjustable Pressure Reducing Valve 150kPa – 600kPa
|
|
CODE
|
DESCRIPTION
|
|
KH8.650
|
65mm Pressure Control Valve Adjustable 150 – 600kPa - Two Cartridge System. Flanged Table 'D'
|
|
KH8.800
|
80mm Pressure Control Valve Adjustable 150 – 600kPa - Three Cartridge System. Flanged Table 'D'
|
|
KH8.000
|
100mm Pressure Control Valve Adjustable 150 – 600kPa - Four Cartridge System. Flanged Table 'D'
|
Refer to "Industrial Geysers and Valves" in the Product Section.
REPLACEMENT CARTRIDGES
|
CODE
|
DESCRIPTION
|
|
KH3.102C
|
Cartridge for Pressure Control Valve KH3.102 - 200kPa
|
|
KH3.104C
|
Cartridge for Pressure Control Valve KH3.104 & KH3.114 - 400kPa
|
|
KH3.106C
|
Cartridge for Pressure Control Valve KH3.106 & KH3.116 - 600kPa
|
|
KH3.201C
|
Cartridge for Pressure Control Valve KH3.121 - 100kPa
|
|
KH3.202C
|
Cartridge for Pressure Control Valve KH3.122 - 200kPa
|
|
KH3.204C
|
Cartridge for Pressure Control Valve KH3.124 - 400kPa
|
|
KH3.206C
|
Cartridge for Pressure Control Valve KH3.126 - 600kPa
|
|
KH2.151C
|
Cartridge for Expansion Relief Valve - 100kPa
|
|
KH2.152C
|
Cartridge for Expansion Relief Valve - 200kPa
|
|
KH2.154C
|
Cartridge for Expansion Relief Valve - 400kPa
|
|
KH2.156C
|
Cartridge for Expansion Relief Valve - 600kPa
|
|
KH2.15D
|
Cartridge for Expansion Relief Valve - 400 & 600kPa
|
|
KH3.20S
|
Strainer for Pressure Control Valve KH3.124/6 - 400 & 600kPa
|
|
KH3.10S
|
Strainer for Pressure Control Valve KH3.104/6 & KH3.112/4/6
|
|
|
KWIKOT BREAKER – VACUUM RELIEF VALVES
|
CODE
|
DESCRIPTION
|
|
KH4.150
|
15mm MI vacuum relief valve
|
|
KH4.200CX
|
20mm C X C vacuum relief valve
|
|
|
KWIKSAFE – SAFETY VALVE
|
CODE
|
DESCRIPTION
|
|
KH1.401CX M
|
20mm MI Temperature & Pressure Relief Valve (safety valve) with Compression Outlet 100kPa
|
|
KH1.402CX
|
20mm FI Temperature & Pressure Relief Valve (safety valve) with Compression Outlet 200kPa
|
|
KH1.404CX M
|
20mm MI Temperature & Pressure Relief Valve (safety valve) with Compression Outlet 400kPa
|
|
KH1.404CX
|
20mm FI Temperature & Pressure Relief Valve (safety valve) with Compression Outlet 400kPa
|
|
KH1.406CX
|
20mm FI Temperature & Pressure Relief Valve (safety valve) with Compression Outlet 600kPa
|
|
|
KWIKDRAIN – DRAINCOCK
|
CODE
|
DESCRIPTION
|
|
KH5.000
|
20mm FI draincock
|
|
KH5.001
|
20mm FI draincock with compression inlet
|
|
|
EXPAN-FLO
EXPANSION VESSEL
|
EXPAN-FLO is an expansion vessel with anti-legionella valve, used in applications such as high rise buildings, office blocks, flats and holiday flats or apartments where the expansion relief pipes are difficult to install and monitor.
|
|
Volume Expansion Vessel
|
12 Litre
|
18 Litre
|
|
Pressure Relief Valve
|
6 bar
|
6 bar
|
|
Volume Water Heater
|
up to 200 litres
|
up to 300 litres
|
THERMO-FLO
THERMOSTATIC MIXING VALVE
|
THERMO-FLO thermostatic mixing valve controls water temperature via a wax operated thermostatic cartridge. For applications such as laboratories, in hosiptal operating theatres, mental institutions, correctional services, boarding schools and emergency shower facilities in chemical plants, where water of a precise regimented temperature is essential.
|
|
Temperature setting range:
|
35 - 48°C
|
|
Temperature, factory set:
|
43°C
|
|
Hot water inlet temperature:
|
52 - 95°C
|
|
Cold water inlet Temperature:
|
5 - 25°C
|
|
Operating over pressure:
|
max. 10 bar
|
|
Flow rate capacity:
|
1,74 m³/h at Dp 1 bar
|
|
Min. flow rate capacity:
|
0,24 m3/h
|
|
Mounting position:
|
any orientation (please note all markings on the body. ie, H and C)
|
|
|
DN 15
|
DN 20
|
|
H
|
147 mm
|
148 mm
|
|
L
|
143 mm
|
146 mm
|
