KWIKOT UNVENTED HOT WATER STORAGE CYLINDERS

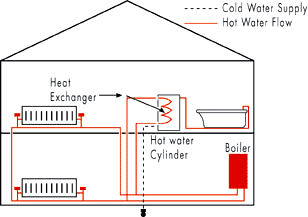

This range of water storage cylinders are directly connected to the water main via a pressure control valve, and eliminates the requirement of a feed and expansion tank. Water can be heated DIRECTLY with electrical immersion elements, or INDIRECTLY from the central heating boiler with the use of a coil inside the cylinder.

AESTHETICS:

Pre-painted outer casement in appliance white

INSTALLATION:

  • Balanced pressure allows simultaneous use of hot water outlets without temperature fluctuations
  • Large choice of tap fittings can be used
  • Closed system allows potable water to all fittings without risk of contamination of cistern water
  • No need for a shower pump
  • Reduced noise level with no cistern to fill
  • Easy access for inspection, service and maintenance
SPECIFICATION:

DIRECT CYCLINDER
Capacity (litre)
External Diameter
mm   in
Internal Diameter
mm   in
Height

mm   in
Empty Weight
kg   lbs
Full Weight
kg   lbs
Anode Length
mm   in
150
525  21
472  18
1090  43
50  110
200  441
550 21,6
210
525  21
472  18
1436  57
67  148
227  609
720 28,3

INDIRECT CYCLINDER
Capacity (litre)
External Diameter
mm   in
Internal Diameter
mm   in
Height

mm   in
Empty Weight
kg   lbs
Full Weight
kg   lbs
Anode Length
mm   in
150
525  21
472  18
1090  43
70  154
220  485
550 21,6
210
525  21
472  18
1436  57
87  192
297  655
720 28,3

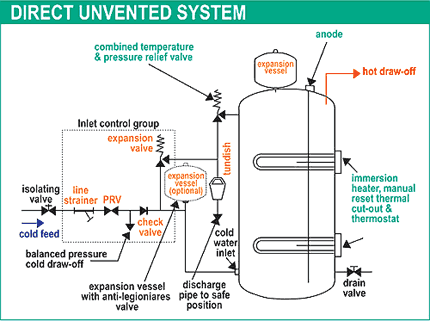

THE KWIKOT PACKAGE

1 & 2 INNER CYLINDER manufactured from 2mm vitreous enamelled steel for maximum pressure capability.
OUTER CASEMENT 0,8mm pre-painted appliance white steel.
3 Non-adjustable TEMPERATURE & PRESSURE RELIEF VALVE, designed to discharge in the event of over pressure or temperature conditions.
4 3kW / 240V AC IMMERSION HEATER with integral control thermostat with manual reset high limit cut out.
5 Serviceable MAGNESIUM SACRIFICIAL ANODE for corrosion protection in aggressive water areas.
6 INLET CONTROL GROUP comprising a serviceable strainer, pressure reducing valve, check valve, balanced cold water feed and expansion relief valve.
7 Discharge TUNDISH with visual check for discharge.
8 CONTROL THERMOSTAT for motorised valve.
9 HIGH LIMIT THERMOSTAT to shut motorised valve in over temperature condition.
10 MOTORISED VALVE controlling flow through indirect heating coil.
11 TERMINAL BOX ASSEMBLY for wiring indirect control instruments.

NOTE: Items 8, 9, 10 & 11 apply to indirect systems only

INDIRECT CYLINDER


1 Sacrificial Magnesium Anode
2 T & P Relief Valve
3 Thermofused Vitreous Enamel Lining
4 Heating Coil for Indirect System
5 Insulation (CFC Free)
6 Cold Water Inlet
7 Expansion Tank Connection
8 Hot Water Outlet
9 High Limit Temperature Cut Out
10 Primary Flow
11 Secondary Return
12 Appliance White Pre-Coated Steel
13 Temperature Control Thermostat Indirect
14 Primary Return
15 Immersion Heater With Thermostat
